Combo Board Asus Prime B450m-a Ii + Amd Ryzen 5 5600g

Descripción

Somos TECNOLOAR.COM

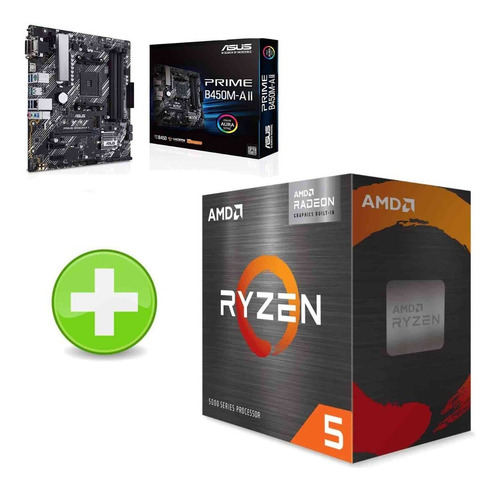

ASUS Prime B450M-A II + Procesador AMD Ryzen 5 5600G

Si requieres adicionalmente. memorias, almacenamiento, fuente de poder, monitor y/o otros accesorios para tu equipo con gusto te ayudaremos.

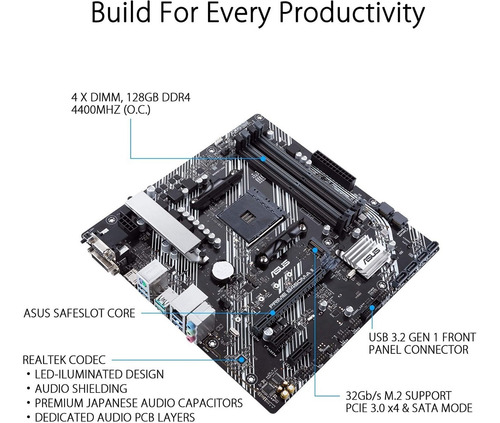

ASUS Prime B450M-A II AMD AM4

Caracteristicas Principales.

Soporta Ryzen 5000, 3ª/2ª/1ª generación Ryzen
Formato Micro ATX
128GB DDR4,maximo 4400Mhz O.C.
NVMe,
HDMI 2.0b/DVI/D-Sub, USB 3.2 Gen 2,
BIOS Flashback y Aura Sync


CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
* Refer to www.asus.com for CPU support list


Chipset

AMD B450


Memory

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.


Graphic

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
1 x D-Sub
1 x DVI-D
1 x HDMI 2.0b
*Graphics specifications may vary between CPU types.


Expansion Slots

3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1


Storage

Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Athlon™ with Radeon™ Vega Graphics Processors : *1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
2 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10


LAN

Realtek® RTL8111H
ASUS LANGuard


Audio

Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.


USB Ports

Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)


Software Features

ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
PC Cleaner
- EZ update
- System Information
ASUS CPU-Z
AI Charger
ASUS EZ Installer
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode


ASUS Special Features

ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
AURA Sync
- AURA RGB header
ASUS Lighting Control


Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)

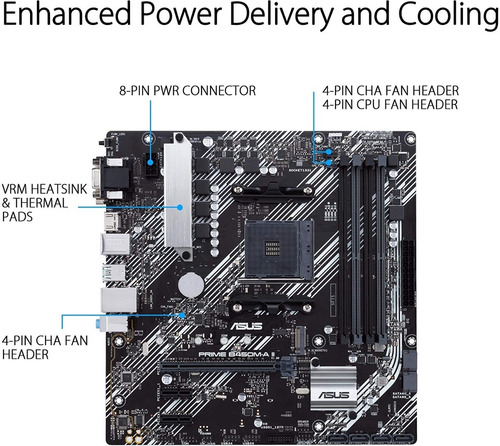

Internal I/O Ports

1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
1 x RGB Header


Accessories

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD


BIOS

256 Mb Flash ROM, UEFI AMI BIOS


Operating System

Windows® 10 64-bit
Windows® 7 64-bit *2


Form Factor

mATX Form Factor
9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )

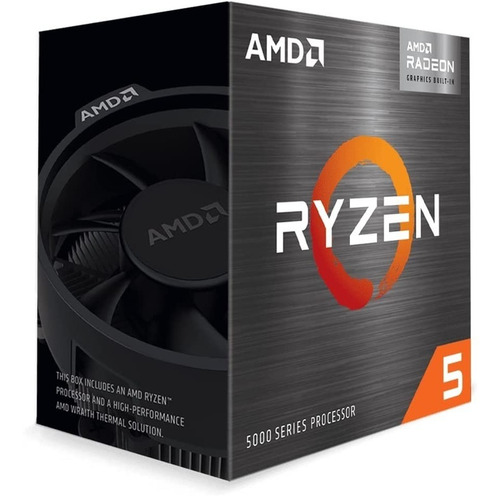

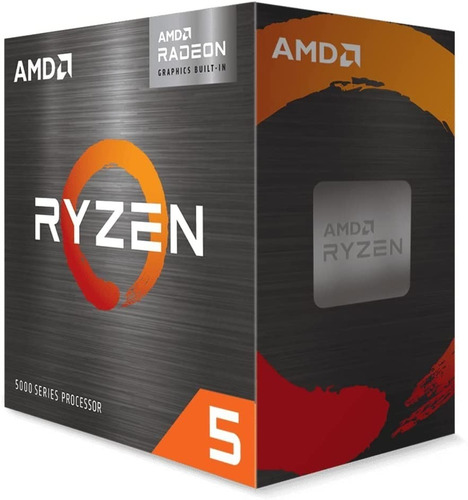

Procesador AMD Ryzen 5 5600G


Especificaciones generales


Plataforma: Procesador en caja
Familia de productos: Procesadores AMD Ryzen™
Línea de producto: Procesadores de escritorio AMD Ryzen™ 5 5000 serie G con gráficos Radeon™
Antiguo nombre en clave: "Cézanne"
# de núcleos de CPU: 6
# de los hilos: 12
máx. Reloj de impulso: Hasta 4,4 GHz
Reloj básico: 3,9 GHz
Caché L2: 3MB
Caché L3: 16 MB
TDP predeterminado: 65W
TDP configurable de AMD (cTDP): 45-65W
Tecnología de procesador para núcleos de CPU: FinFET de 7nm de TSMC
Desbloqueado para Overclocking : Sí
Zócalo de la CPU: AM4
Solución Térmica (PIB): Sigilo de espectro
máx. Temperatura de funcionamiento (Tjmáx): 95°C
Fecha de lanzamiento: 13/04/2021
*Soporte de sistema operativo: Windows 11 - Edición de 64 bits
Windows 10 - Edición de 64 bits
RHEL x86 de 64 bits
Ubuntu x86 de 64 bits
*La compatibilidad con el sistema operativo (SO) variará según el fabricante.


Conectividad

Versión PCI Express®: PCIe® 3.0
Tipo de memoria del sistema: DDR4
Canales de memoria: 2
Especificación de la memoria del sistema: Hasta 3200MHz


Capacidades gráficas

Gráficos integrados: Sí
Modelo de gráficos: Gráficos Radeon™
Recuento de núcleos de gráficos: 7
Frecuencia de gráficos: 1900 MHz


ID de producto

ID de producto en caja: 100-100000252BOX
Bandeja de identificación del producto: 100-000000252
ID de producto MPK: 100-100000252MPK




Cualquier duda o inquietud sobre el producto o su compatibilidad con otros dispositivos la puede plantear en la sección de preguntas y con gusto le responderemos en el menor tiempo posible.
