2 X Mje13007 St13007 J13007 13007 Power 8a 400v 80w Npn

Descripción

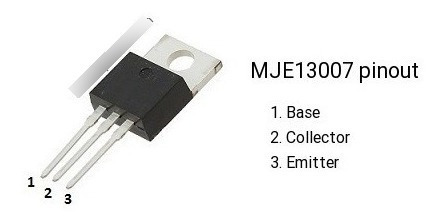

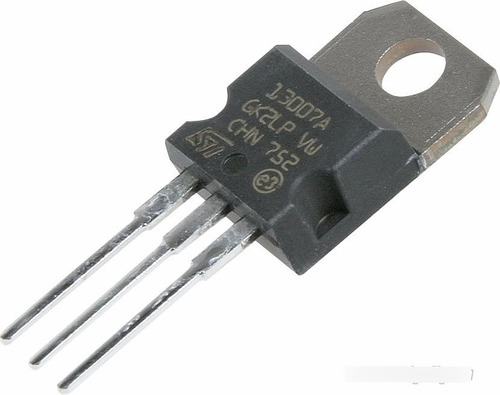

2 UNIDADES MJE13007 8.0 A, 400 V NPN Bipolar Power Transistor

*************************************************************************************************************************************************************

Manufacturer: STMicroelectronics
Product Category: Bipolar Transistors – BJT
RoHS: Details
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 400 V
Emitter- Base Voltage VEBO: 9 V
Collector-Emitter Saturation Voltage: 1 V
Maximum DC Collector Current: 8 A
Maximum Operating Temperature: + 150 C
Series: 500V to 1000V Transistors
DC Current Gain hFE Max: 30
Height: 9.15 mm (Max)
Length: 10.4 mm (Max)
Packaging: Tube
Width: 4.6 mm (Max)
Brand: STMicroelectronics
Continuous Collector Current: 8 A
DC Collector/Base Gain hfe Min: 16
Minimum Operating Temperature: – 65 C
Pd – Power Dissipation: 80 W
Factory Pack Quantity: 1000
Unit Weight: 6 g

*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
